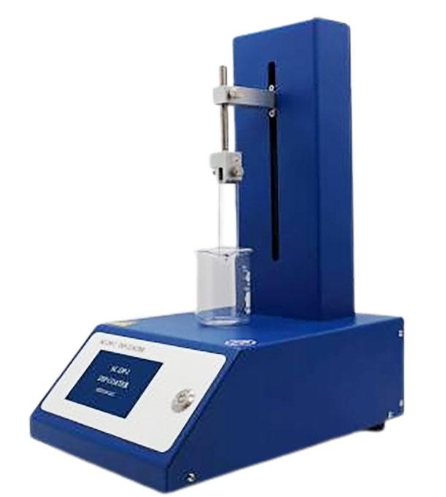

Laboratory Compact Dip Coater
Z-DCP1 Dip Coater provides high-performance specifications and simple-to-use integrated programmable software to give researchers the tools they need to coat high-quality films sample.
To provide accurate movement, the Z-DCP1 uses the same high-precision stages as can be found in our high performance lab Spin Coater. The result is a dependable machine which can consistently produce and reproduce high-quality films with ease, every time you use it.
Z-DCP1 Specifications
Dipping Speed : 0.1 - 600mm/min
Max Distance : 100mm
Displacement Accuracy : +/- 0.1mm
Rated Linear Thrust : >50N
Dipping Time : 0-9999.9s
Repeat Dipping Time : 0-9999.9s
Times Repeat : 1-999
Max Wafer Dimension : 100mm
Dimension : 363x227x416mm
Gross Weight : 5Kg
Power Supply : AC110-220V 50Hz

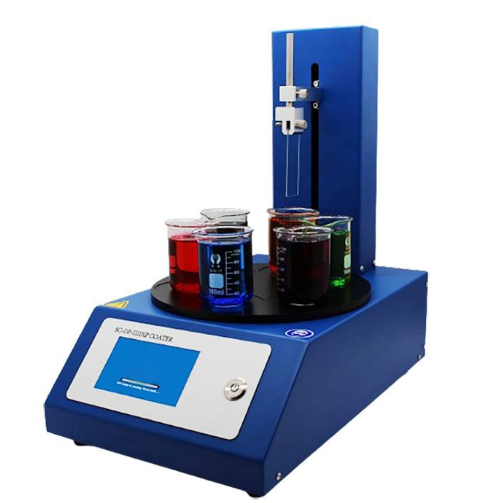

Z-DCP6 is six station compact Dip Coater with high accuracy to provide high-performance specifications and simple-to-use integrated programmable software that give researchers the tools that they need to coat high-quality films sample.
To provide accurate movement, the Z-DCP6 dipping speed and coating time is controlled by a LCD programmable touch panel with the repeat coating time can reach up to 999times.
Z-DCP6 Specifications
Dipping Speed : 0.1 - 600mm/min
Max Distance : 300mm
Displacement Accuracy : +/- 0.1mm
Rated Linear Thrust : >100N
Dipping Time : 0-9999.9s
Repeat Dipping Time : 0-9999.9s
Times Repeat : 1-999
Max Wafer Dimension : 150mm
Dimension : 500x300x550mm
Gross Weight : 15Kg
Power Supply : AC110-220V 50Hz
